"THE SUPER DOOPER LOOPER BOX" - PASSIVE SIX CHANNEL SERIAL LOOPER - provides a convenient way to switch in and out your pedals. "THE SUPER DOOPER LOOPER BOX" is handmade.
"The Super Dooper Looper Box" is manual and not programmable. There are two models. One has rotary switches on its front and can provide the capability to order the serial sequence of your pedals with out unplugging them (P/N SDL100-001). The other model is for those who do not desire to change the serial order of your pedals and is fixed and cannot change the order of your pedals without unplugging them (P/N SDL100-002).
Features:
-
Supports up to six pedals with six selectable channels.
-
Works off a 9Vdc battery (6LR61) or a standard external 9Vdc pedal board power supply.
-
The 9Vdc battery power will not be used if external pedal 9Vdc pedal board power is provided.
-
Will still function without any 9Vdc power. Only the illumination of the LEDs will not function without battery or external power.
-
No programing required.
-
Battery power will not be used unless a plug is placed in the "IN" jack to prevent draining the battery when not in use.
-
Uses Mono 1/4" plugs only.
-
For a particular channel, its LED will not illuminate unless a plug is placed in its "INPUT" jack to provide better troubleshooting.
-
For a particular channel, if a plug is not placed in its "INPUT" jack, it will go into bypass; thereby, allowing a pedal to be removed without effecting the functionality of the other channels.
-
Contains no circuit boards or any active circuitry.
-
Each of the six channels has a different color scheme.(Red, Orange, Blue, Yellow, Green, White)
-
The Sixth Channel uses a LED which slowly changes colors.
Custom Looper Pedals:
Should you need a similar custom pedal for your specific application please E-Mail me at technology@rudley.com. I would provide you a quote. It generally would take about 2-months to build you a custom pedal.
Click Here for a Brochure: THE SUPER DOOPER LOOPER BOX Brochure
Click Here for the Users Manual: THE SUPER DOOPER LOOPER BOX Users Manual
Click Here for a Video that Demonstrates "THE SUPER DOOPER LOOPER BOX":

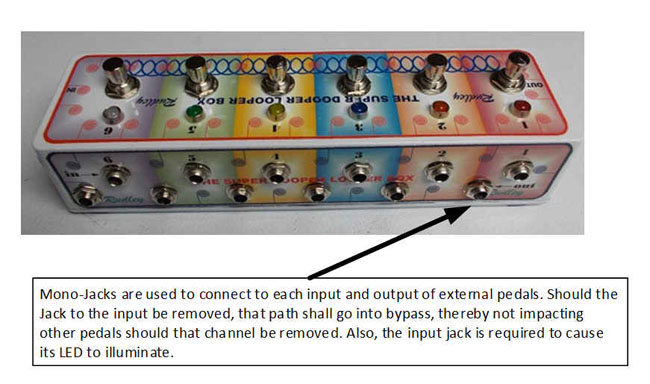

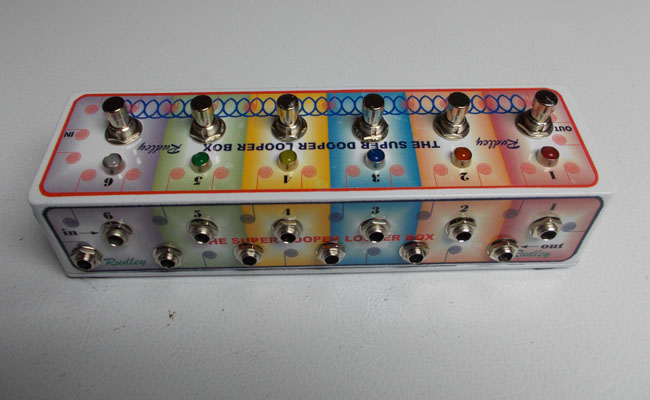

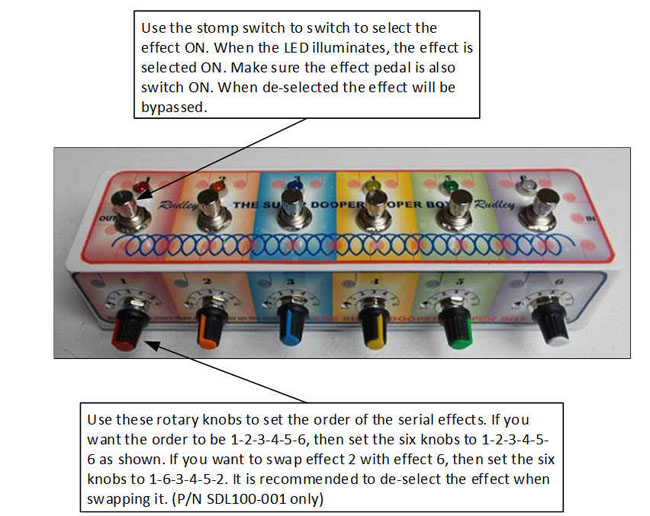

Front and top of box (P/N SDL100-001 - Rotary Switches, P/N SDL100-002 - No Rotary Switches):

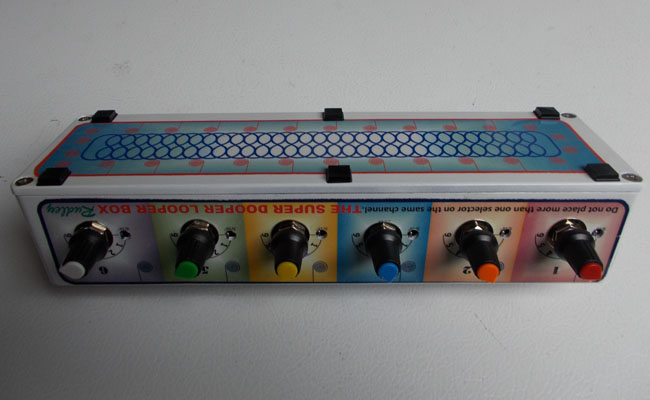

Back of Box (Both P/N SDL100-001 & SDL100-002):

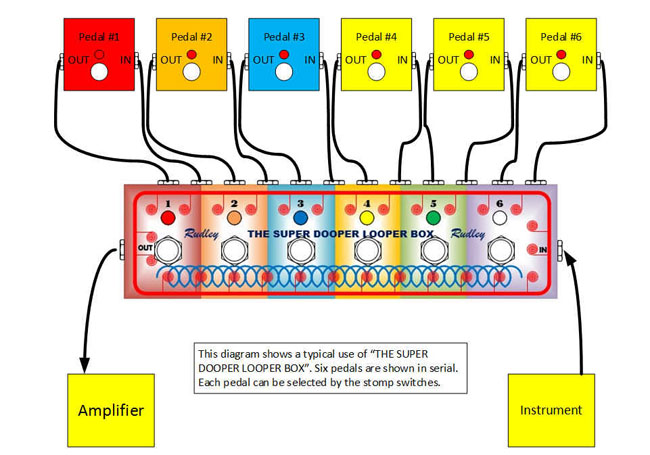

Typical Looper Box Setup (Both P/N SDL100-001 & SDL100-002):

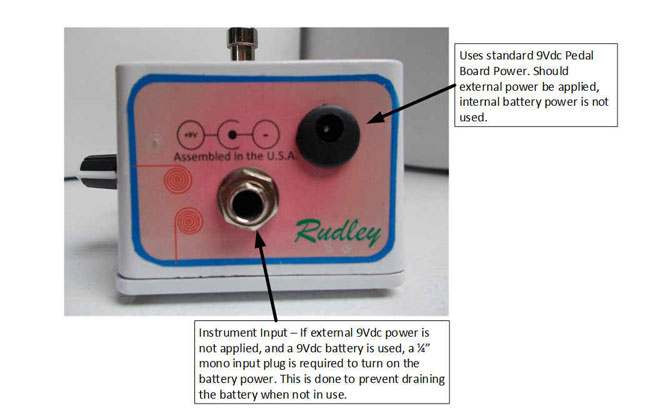

Input Jack and 9Vdc External Power (Both P/N SDL100-001 & P/N SDL100-002):

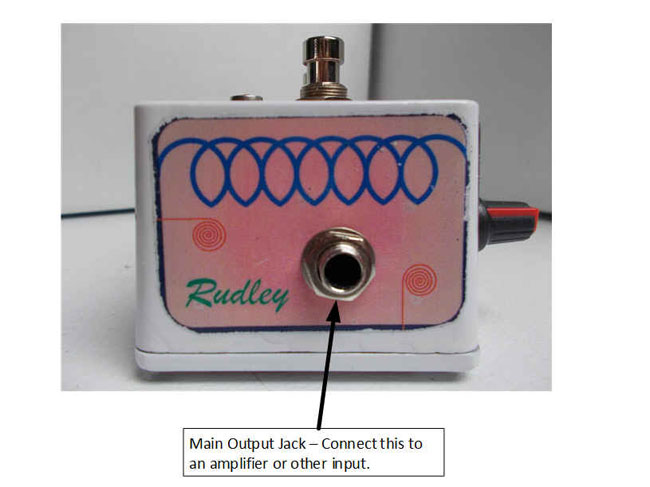

Output Jack (Both P/N SDL100-001 & P/N SDL100-002):
