"THE PEDAL DISTRITUBER MIXER BOX" - ACTIVE THREE CHANNEL PARALLEL LOOPER - This box provides active parallel paths for your pedal effects. This will complement the functionality of loopers and pedals on your pedal board and will provide you a better way to mix your pedals effects to obtain a better sound. "THE PEDAL DISTRIBUTER MIXER BOX" is handmade.
There are two different models. P/N PDM100-001 does not have phase switches. P/N PDM100-002 has three additional phase switches that allows the user to invert the phase of each channel. This provides greater flexibility in the sounds that this pedal can provide.
Features:
-
Supports up to three parallel paths with three selectable channels.
-
Works off a 9Vdc battery (6LR61) or a standard external 9Vdc pedal board power supply.
-
The 9Vdc battery power will not be used if external pedal 9Vdc pedal board power is provided.
-
Battery power will not be used unless a plug is placed in the "IN" jack to prevent draining the battery when not in use.
-
Uses Mono 1/4" plugs only.
-
For a particular channel, its LED will not illuminate unless a plug is placed in its "RETURN" jack to provide better troubleshooting.
-
Each of the three channels has a different color scheme.(Red, Yellow, Blue, Yellow)
-
The guitar input signal is buffered before being distributed among the 3-channels.
-
Each send and return has a gain that can be varied with a range of 0 to 2 V/V.
-
When each potentiometer is centered the gain is unity (1 V/V).
Custom Looper Pedals:
Should you need a similar custom pedal for your specific application please E-Mail me at technology@rudley.com. I would provide you a quote. It generally would take about 2-months to build you a custom pedal.
Click Here for a Brochure: THE PEDAL DISTRIBUTER MIXER BOX Brochure
Click Here for the Users Manual: THE PEDAL DISTRIBUTER MIXER BOX Users Manual
Click Here for a Video that Demonstrates "THE PEDAL DISTRIBUTER MIXER BOX":

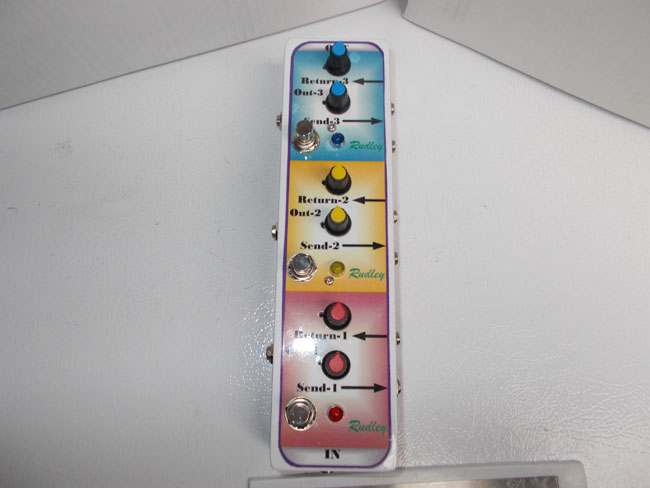

Front of box (P/N PDM100-001 Shown - No Phase Switches, P/N PDM100-002 - with Phase Switches):

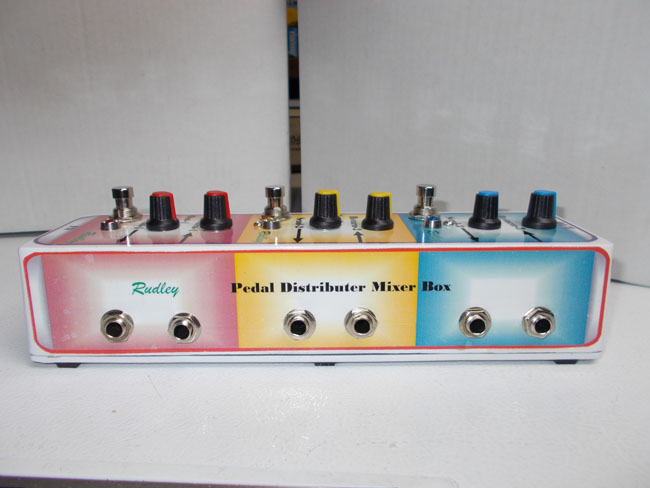

Right Side of Box (Shows SENDS and RETURNS):

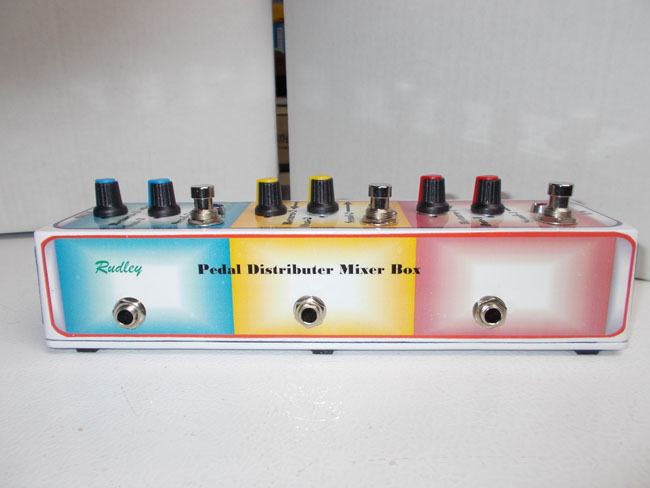

Left Side of Box: (Shows Individual Channel Outputs)

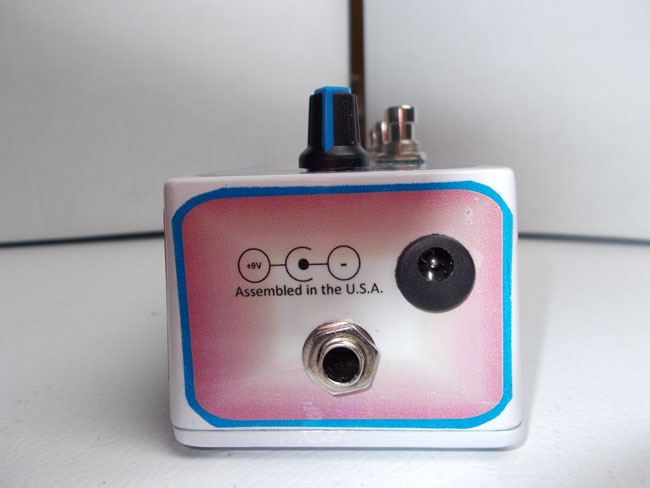

Output Jack and 9Vdc External Power: (Mixes all three channels evenly)
